DVL Series Vacuum Lifters: Safe Glass and Stone Handling Solutions for Factories and Construction Sites

In high-capacity glass fabrication factories and modern curtain wall construction sites, handling oversized, heavy slabs presents a significant logistical and safety challenge. Heavy glass panels, thick granite stones, and engineered quartz slabs weighing hundreds of kilograms require extreme precision during transport. A single minor mishap utilizing traditional handling methods can lead to material breakage, costly project delays, or catastrophic workplace injuries.

To effectively overcome these challenges, the DVL series vacuum lifters from Ausavina have emerged as an industry-leading technology solution. Engineered as heavy-duty material handling equipment, this vacuum lifting system enhances operational productivity while establishing a rigorous benchmark for workplace safety.

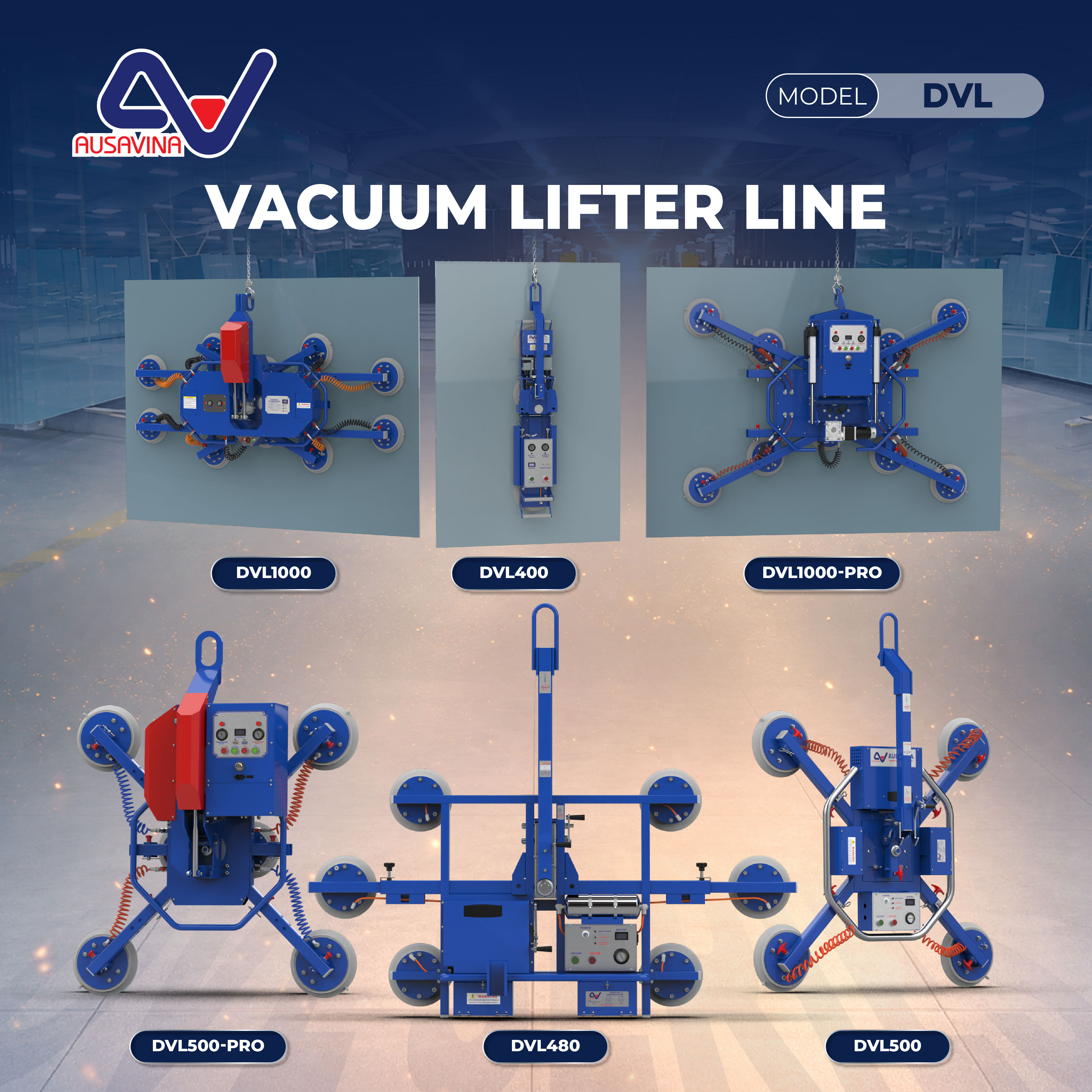

What Are DVL Series Vacuum Lifters?

The DVL series vacuum lifters are specialized vacuum lifting systems designed to efficiently lift, rotate, tilt, and accurately position large format material slabs and glass panels. By exploiting structural negative pressure, the system secures materials firmly without relying on crude chains, ropes, or mechanical clamps—the primary culprits behind micro-cracks and edge chipping.

These industrial-grade machines serve as indispensable assets across glass fabrication shops, stone processing factories, logistics warehouses, and high-rise commercial construction sites. Supported materials include:

• Glass Sheets: Architectural glass, insulated glass units (IGU), and tempered glass.
• Natural Stone: Heavy granite slabs and premium marble slabs.
• Engineered Stone: Industrial quartz slabs and engineered composite stone.
• Modern Materials: Large format porcelain slabs.

Key Features of DVL Series Vacuum Lifters

Powerful Vacuum Lifting System

The integrated heavy-duty vacuum pump delivers an intense, consistent vacuum seal across all suction points. This maintains a solid hold on the material, preventing any micro-slippage or instability when the load is hoisted high or subjected to environmental wind loads.

Flexible Rotation and Tilting

Depending on the model, users can perform:

• 180° rotation
• 360° rotation
• 90° tilting

Battery-Powered Operation

Most models operate with a 12V battery without requiring external power or compressed air.

Safety Features of DVL Series Vacuum Lifters

Dual Vacuum System

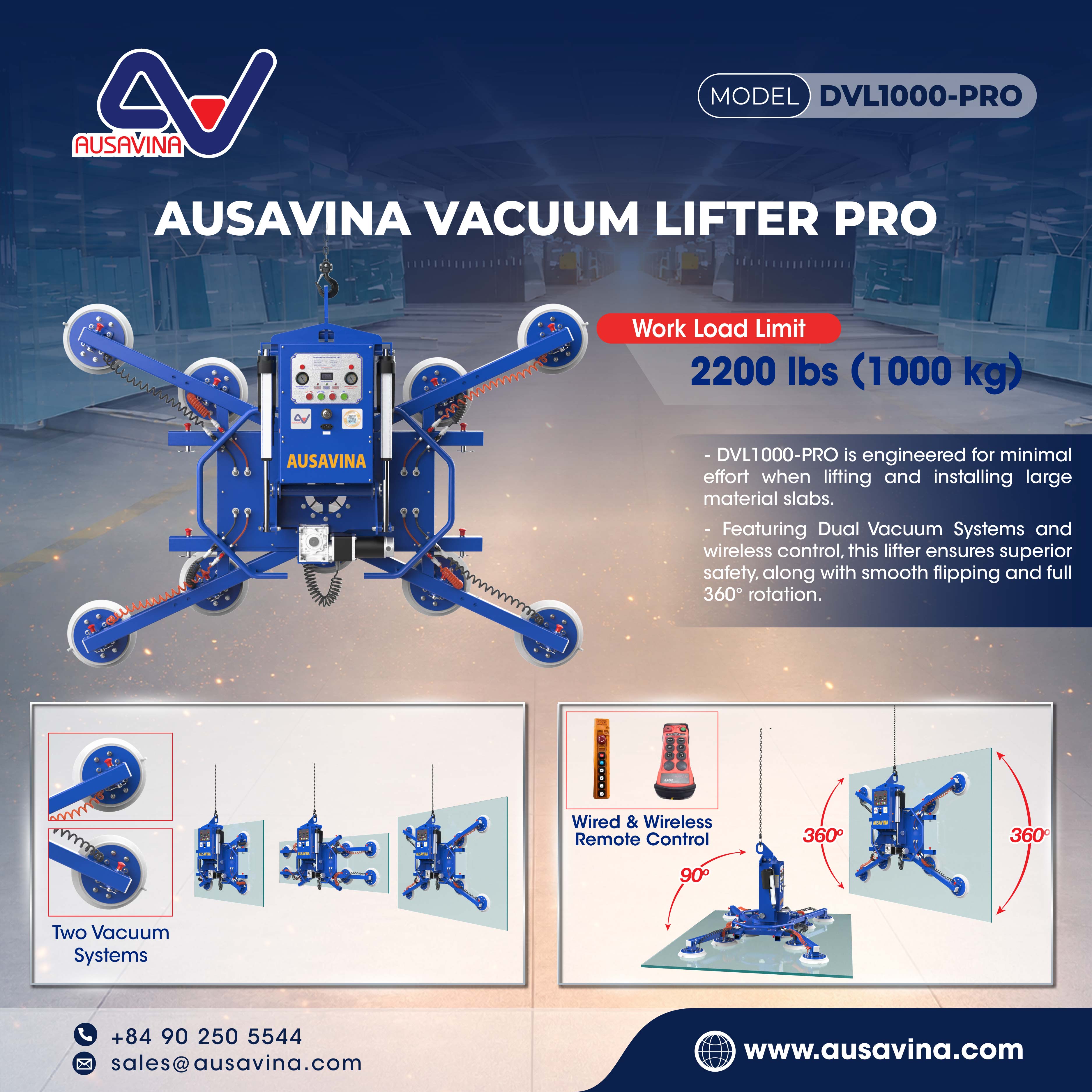

DVL1000 and selected PRO models feature two independent vacuum circuits for redundant protection. Benefits include:

• Reduced load drop risk
• Improved safety
• Reliable operation

Visual and Audible Alarm System

Operators are constantly updated on system stability via an intelligent, dual-sensory monitoring system. A continuous pressure gauge indicates vacuum levels. If the vacuum pressure drops below a safe operational threshold, a high-decibel audible horn sounds simultaneously with flashing red LED strobe lights, prompting the crane operator to safely lower the material immediately.

Even Force Distribution

By utilizing multiple strategically positioned suction pads across a rigid steel lifting frame, the vacuum force is distributed evenly across the entire surface of the slab. This structural configuration is vital when operating quartz slab lifting equipment or handling fragile porcelain slab installations, minimizing localized stress points that cause thin or brittle materials to crack under tension.

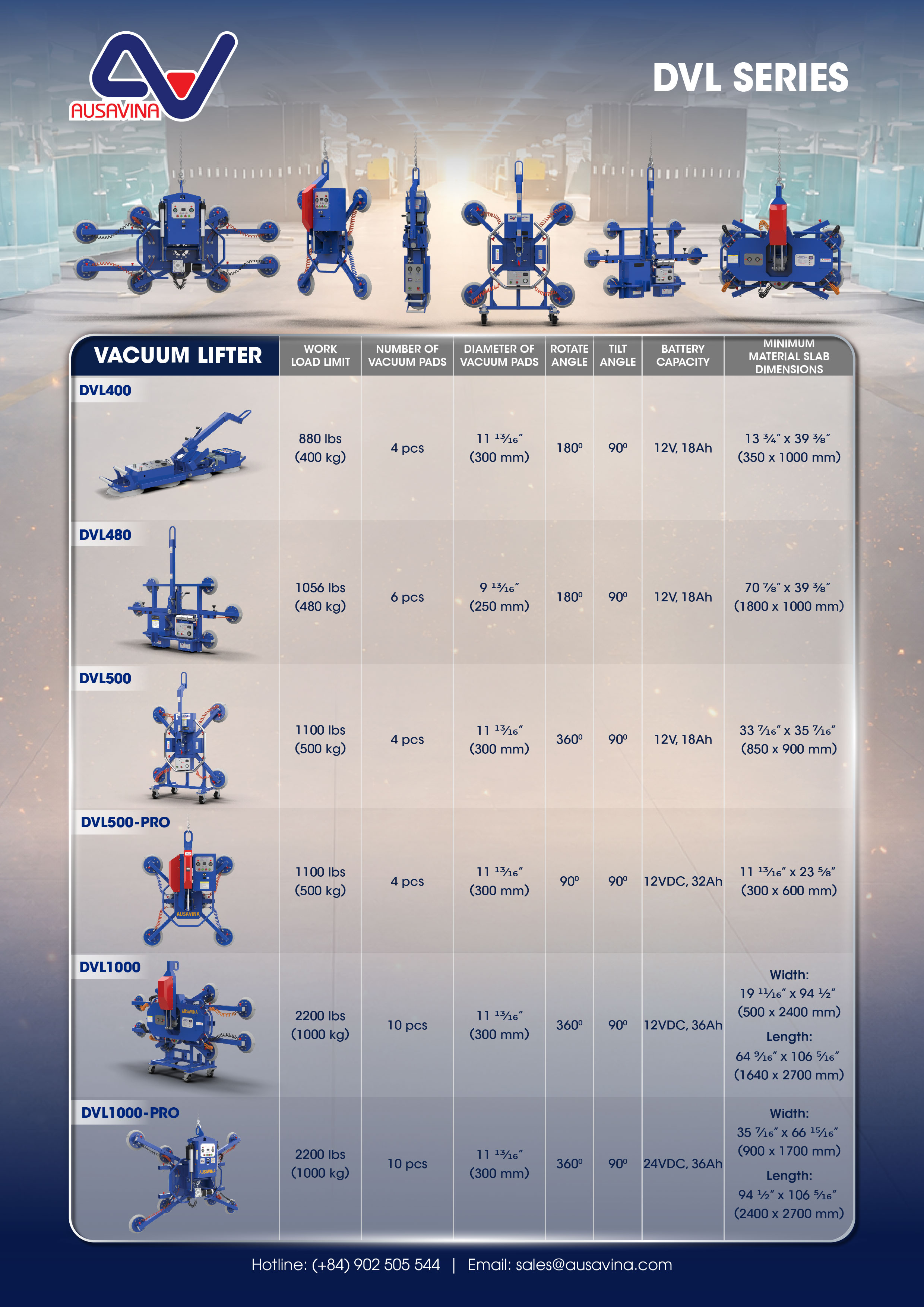

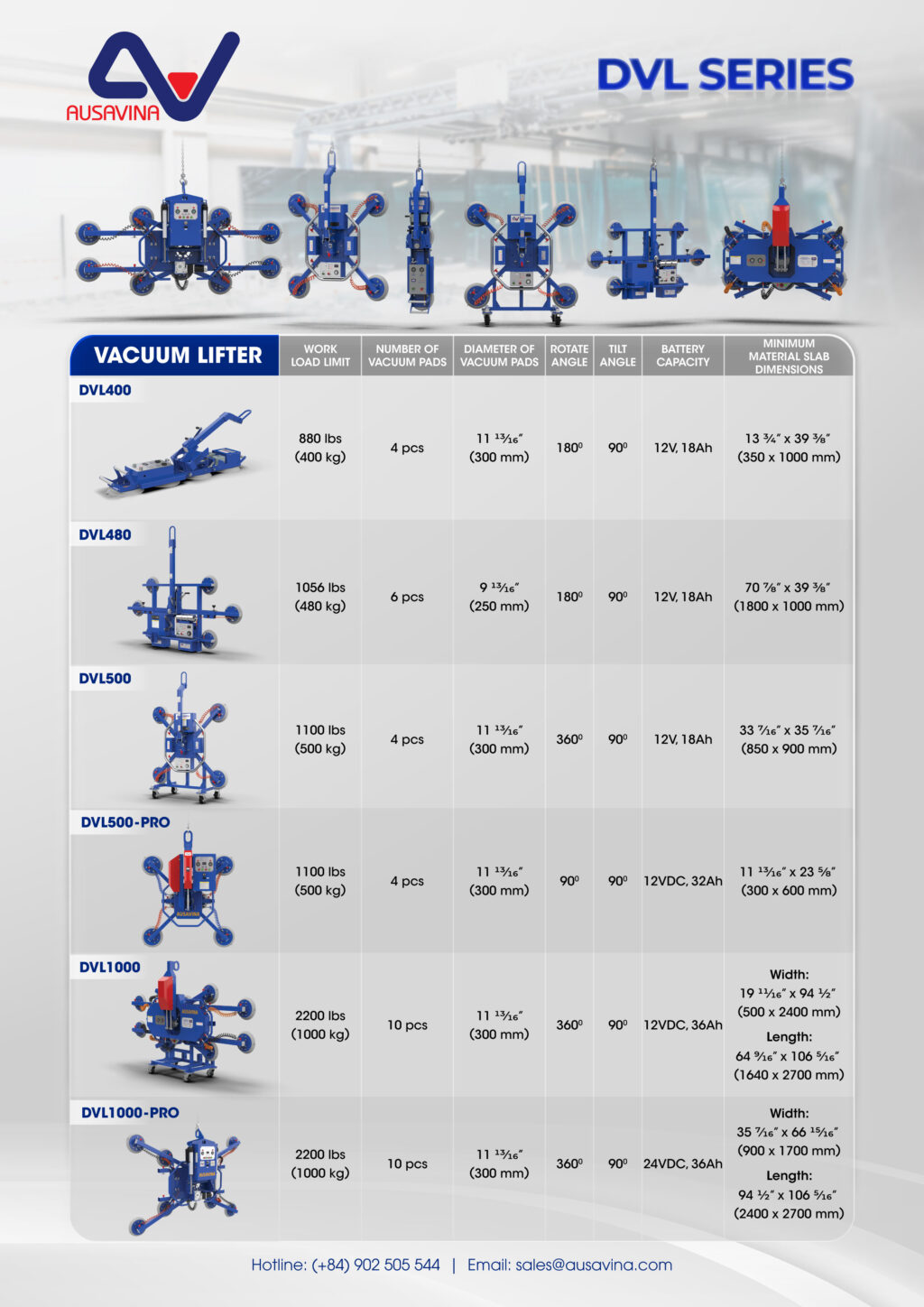

DVL Series Comparison

To assist factory procurement managers and structural site engineers in choosing the ideal configuration, the following matrix breaks down the technical specifications of the DVL family:

Why Choose DVL Series Vacuum Lifters?

Compared with conventional lifting methods, DVL Series Vacuum Lifters provide:

• Higher productivity
• Lower labor costs
• Reduced injury risks
• Better material protection
• Enhanced installation accuracy

Frequently Asked Questions

What materials can DVL Series Vacuum Lifters handle?

The system safely processes any flat, non-porous surfaces including architectural glass sheets, granite slabs, marble slabs, quartz slabs, porcelain panels, and engineered stone.

Which model offers the highest safety level?

DVL1000 and DVL1000-PRO with Dual Vacuum System and Alarm System.

Are DVL Series Vacuum Lifters battery-powered?

Yes. Most models operate with a 12V battery.

Need a Safe Vacuum Lifting Solution?

Explore Ausavina DVL Series Vacuum Lifters for glass, stone, quartz and porcelain applications. Contact our engineering team today to get a professional consultation and a customized quotation for your factory or job site!
