DVL Series Vacuum Lifters: 6 Smart Solutions for Glass & Stone Handling Efficiency

Every glass fabricator, stone factory, and curtain wall contractor faces a different set of lifting challenges — oversized glass panels on a high-rise facade, wide granite slabs on a cutting table, thin porcelain tiles prone to cracking under uneven suction. No single piece of equipment solves all of these. But a well-designed product lineup can.

Ausavina's DVL series vacuum lifters include six models — DVL400, DVL480, DVL500, DVL500-PRO, DVL1000, and DVL1000-PRO — each engineered as a direct solution to a specific handling problem. Every model in the range is battery-powered (no power cord, no compressed air), CE certified, and equipped with automatic pressure alarm systems.

1. Load Capacity From 400 kg to 1,000 kg — The Right Tool for Every Job

Not every project demands the same stone & glass handling equipment. The DVL series offers six models with clearly tiered load capacity and suction pad counts, so buyers match the right capability to the actual job rather than over-specifying or running underpowered:

A stone fabrication shop running multiple slab sizes through the day can match the right model to each stage, avoiding both overspending on capacity and the risks of underpowering a critical lift.

2. Dual Vacuum Systems on PRO Models — Redundancy That Matters

The DVL500-PRO and DVL1000-PRO each run two completely independent vacuum systems — the most critical vacuum lifter safety feature that separates the PRO lineup from standard models.

Both systems operate simultaneously. If one circuit loses pressure for any reason — a worn seal, a minor leak, a component fault — the second system continues holding the slab without interruption. For a 500 kg glass panel on a high-rise curtain wall project or a 1,000 kg granite slab in a factory, this redundancy is not an optional upgrade — it is the operational baseline.

Both PRO models also integrate visual indicator lights and audible alarms that automatically trigger when vacuum pressure drops outside the safe range, keeping the entire crew informed in real time — not just the operator at the control panel.

3. Battery-Powered — No Cords, No Compressed Air, No Restrictions

Every model in the DVL series runs on a rechargeable battery. Standard models use a 12V system; the DVL1000-PRO steps up to 24V for heavier operational demands. A single full charge — taking 6 hours 30 minutes — delivers approximately 150 vacuum-release cycles, enough for a complete production shift without interruption.

The practical advantage is straightforward: no power cord stretched across a factory floor, no compressed air line running to the job site, no dependence on a fixed outlet when installing glass on an upper floor. The vacuum lifting system goes where the work is.

4. 360° Rotation and 90° Tilt — Flexibility That Cuts Labor Time

Every manual reposition of a large slab costs time and effort. The DVL series handles this mechanically:

• DVL400: 180° rotation, 90° tilt
• DVL480: 90° left/right rotation, 90° tilt
• DVL500 and DVL1000: Full 360° continuous rotation, 90° tilt
• DVL500-PRO and DVL1000-PRO: Electric cylinders for powered tilt and rotation

On the PRO models, electric cylinders replace manual lever adjustment entirely — the operator controls tilt angle and rotation direction from the pendant without touching the slab. On curtain wall projects where misalignment by a few millimeters affects the entire panel run, this level of control reduces adjustment time significantly.

5. Adjustable Pad Layouts — One Unit, Multiple Slab Sizes

The DVL500-PRO and DVL1000-PRO, part of the DVL series vacuum lifters, each run two completely independent vacuum systems — the most critical safety feature that separates the PRO lineup from standard models.

Both systems operate simultaneously, allowing each unit to function as a high-performance glass vacuum lifter and stone vacuum lifter. If one circuit loses pressure for any reason — a worn seal, a minor leak, or a component fault — the second system continues holding the load without interruption. For a 500 kg glass panel on a high-rise curtain wall project or a 1,000 kg granite slab in a factory, this level of redundancy is not an optional upgrade — it is the operational baseline.

As a reliable vacuum lifter for glass and vacuum lifter for stone slabs, both PRO models also integrate visual indicator lights and audible alarms that automatically trigger when vacuum pressure drops outside the safe range, keeping the entire crew informed in real time — not just the operator at the control panel.

6. Wireless Remote Control — Better Sightlines, Safer Operations

The DVL1000-PRO and DVL500-PRO include a wireless remote handle. Instead of standing close to the unit and looking down at the control panel, the operator steps back, maintains a clear sightline to both the slab and its landing position, and controls the entire lift remotely. On elevated glass installation equipment setups or in cramped fabrication spaces, that broader view directly reduces positioning errors and accident risk.

The Right DVL Model for Your Application

• Curtain wall glass installation: DVL500 for 360° panel alignment; DVL500-PRO with electric tilt for high-rise glazing work
• Stone and quartz factory: DVL480 with 6-pad grip on wide slabs; DVL1000 for slabs up to 1,000 kg
• Small-format slabs and porcelain: DVL500-PRO handles panels from 300×600mm

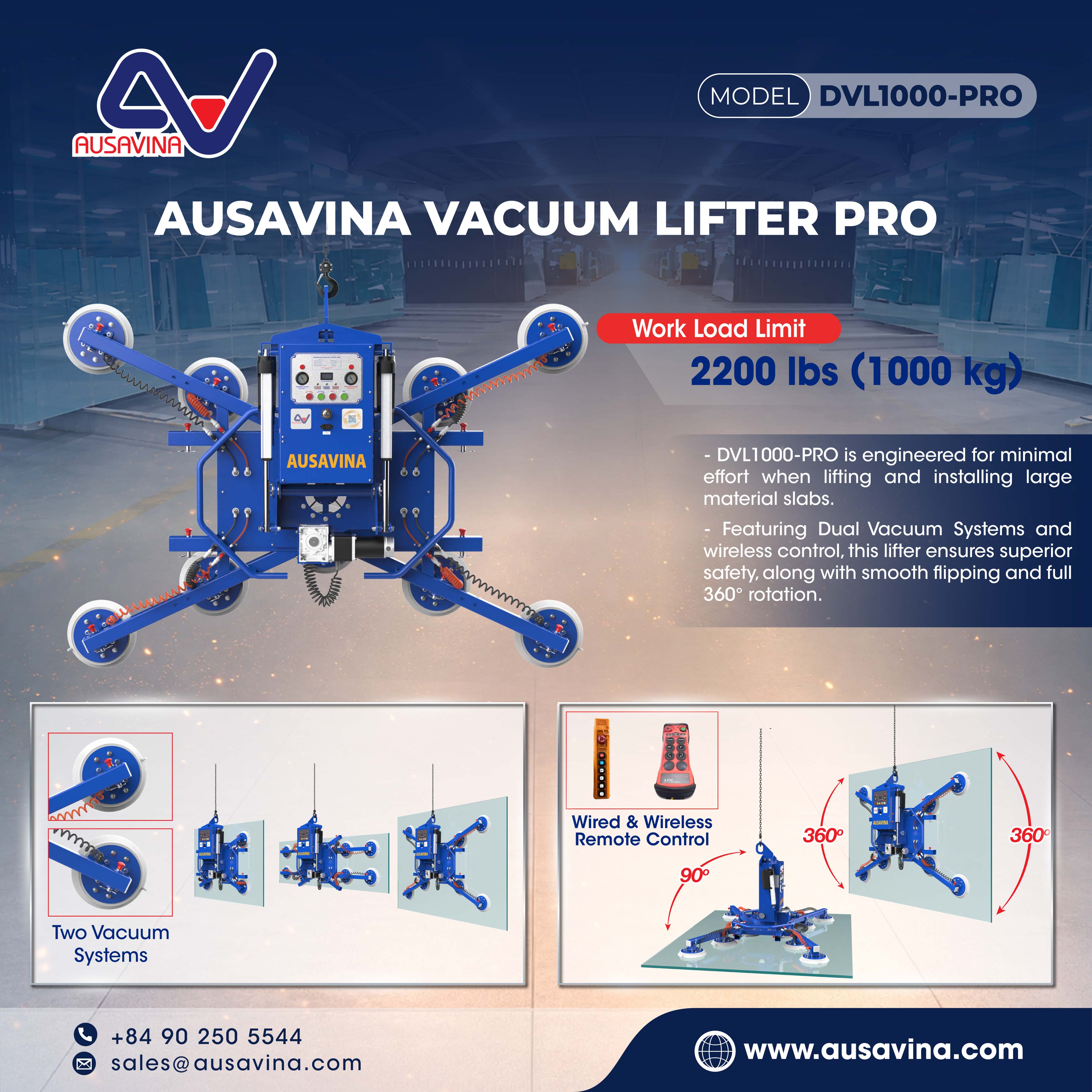

• High-volume heavy-slab operations: DVL1000-PRO with dual vacuum, wireless control, and 1,000 kg WLL

Conclusion

The DVL series vacuum lifters cover the full range of glass handling equipment and stone slab lifting equipment needs — from a compact 400 kg unit for fabrication shops to a 1,000 kg dual-system PRO model for heavy industrial handling. Every model is battery-powered, independent of fixed power infrastructure, and built with safety features as standard rather than optional.

Need help identifying the right model for your slab sizes, load requirements, or site conditions? Contact Ausavina's technical team for a model recommendation and full specification sheet.
