AUSAVINA SMART ONE STOP A-FRAME

Origin	: VIET NAM
Code	: SOSA
Guarantee	: 1 YEAR
Price	: Call
Quantity	: Call

Spare parts:

AUSAVINA SMART ONE STOP A-FRAME

I. EQUIPMENT GENERAL INFORMATION:

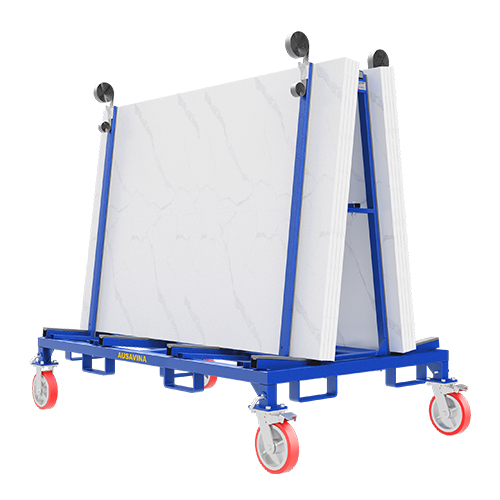

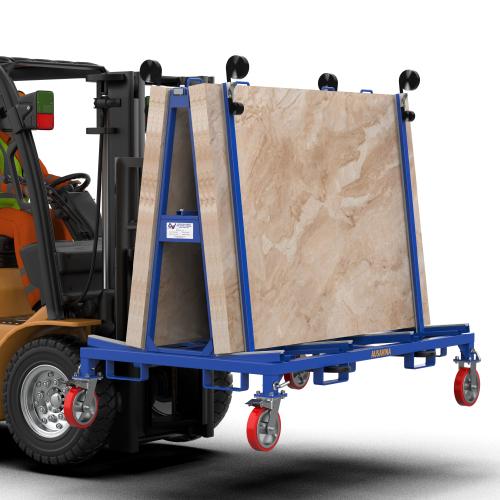

- Ausavina Smart One Stop A-frame is a new model to used to transport and store the slabs and other sheets of material. It is effective in workshop, warehouse or work sites.

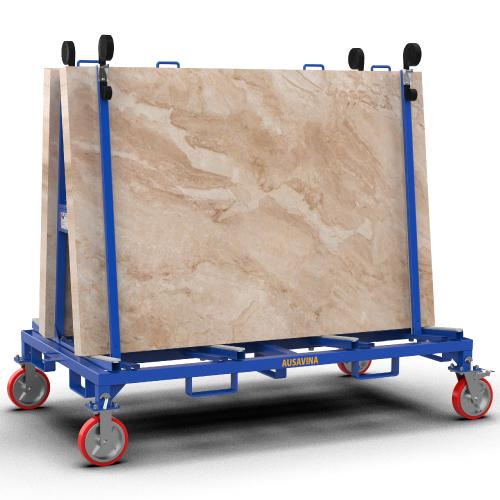

- Rubber strips covered on the A-frame surface protect the slabs or sheets from cracking or chipping off. Four ratchet securing bars additionally provide the slabs with more restrained security during moving.
- Composition of this A-frame is by detachable components and parts, so it is convenient to disassemble for transportation and reassemble easily. Specifically, four caster wheels can be disassembled to convert the A-frame from transportation unit to storage one or make it easy to place on the truck.

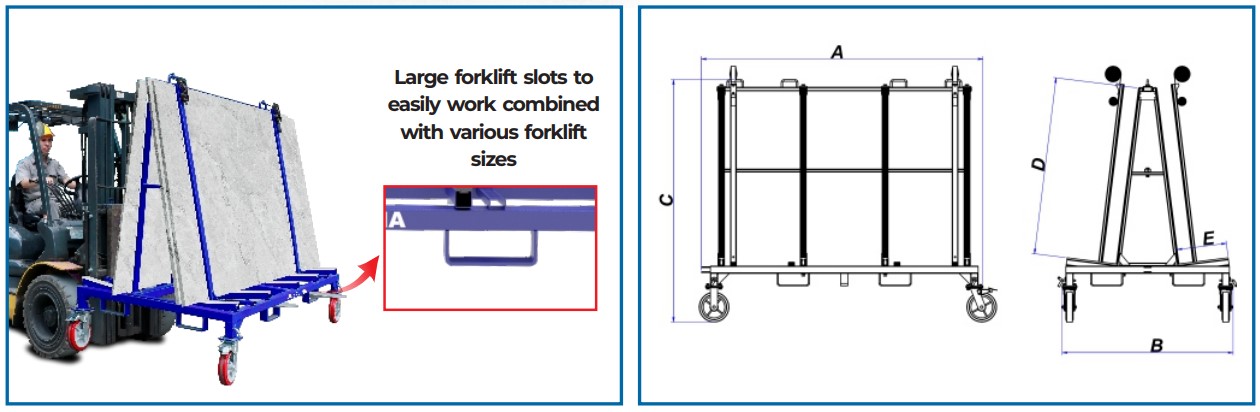

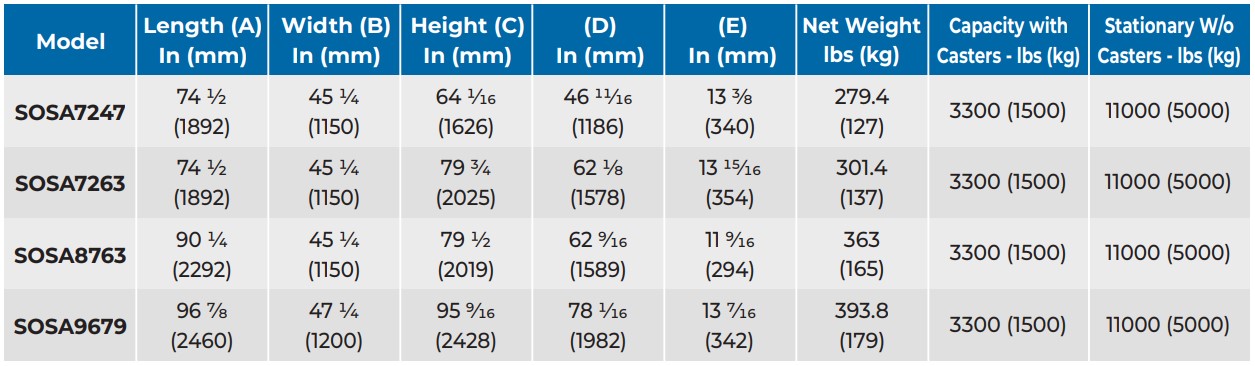

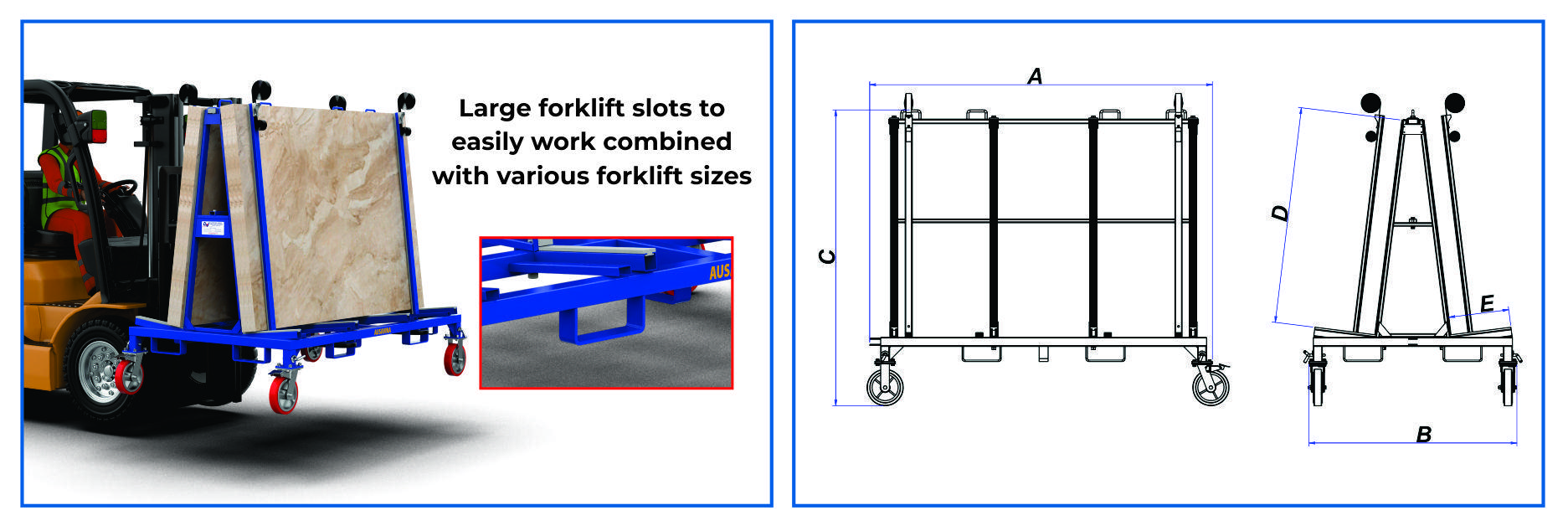

II. TECHNICAL SPECIFICATIONS

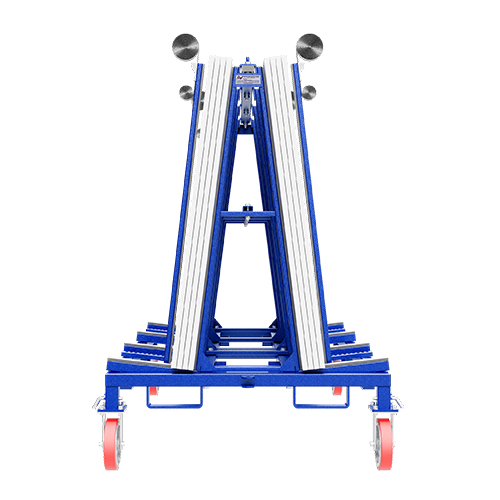

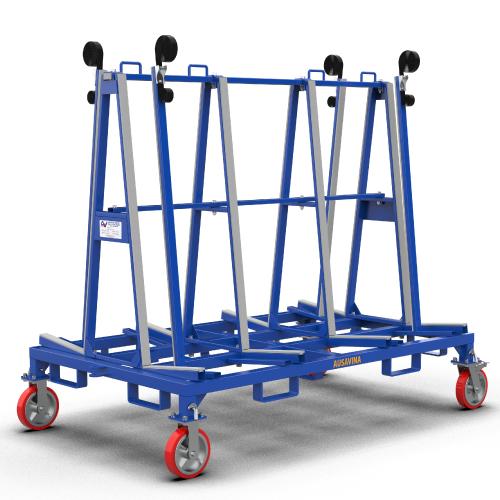

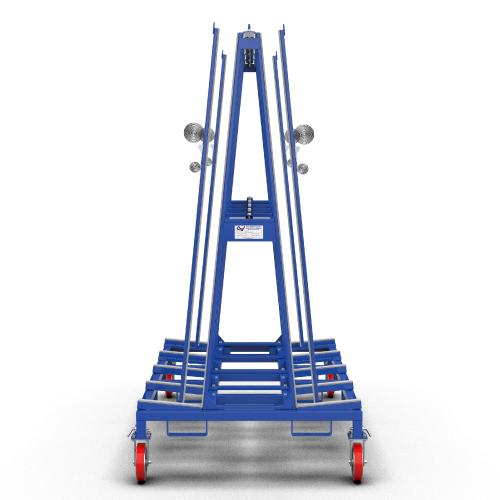

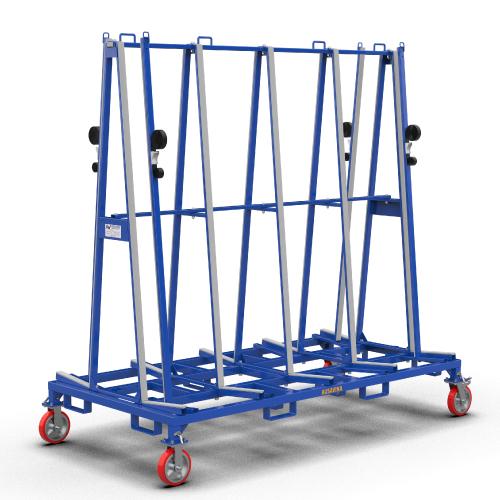

- Consists of two main parts: a Base frame and an A- shaped frame. In addition, it also come with a couple of ratchet securing bars.
- The base frame is attached to four caster wheels. Two swivel casters can provide easy maneuvering in different directions.
- The ratchet securing bars have ratchet straps on the top and grooves on the base to insert bottom-end toe part into the grooves on the base. Depending on the size and number of the slabs to move and arrange the ratchet securing bars in the suitable positions.
